The Crossbar That Holds Everything Together — 1/4 IPS Female Mounting Bracket for Pendant, Sconce, and Ceiling Fixtures

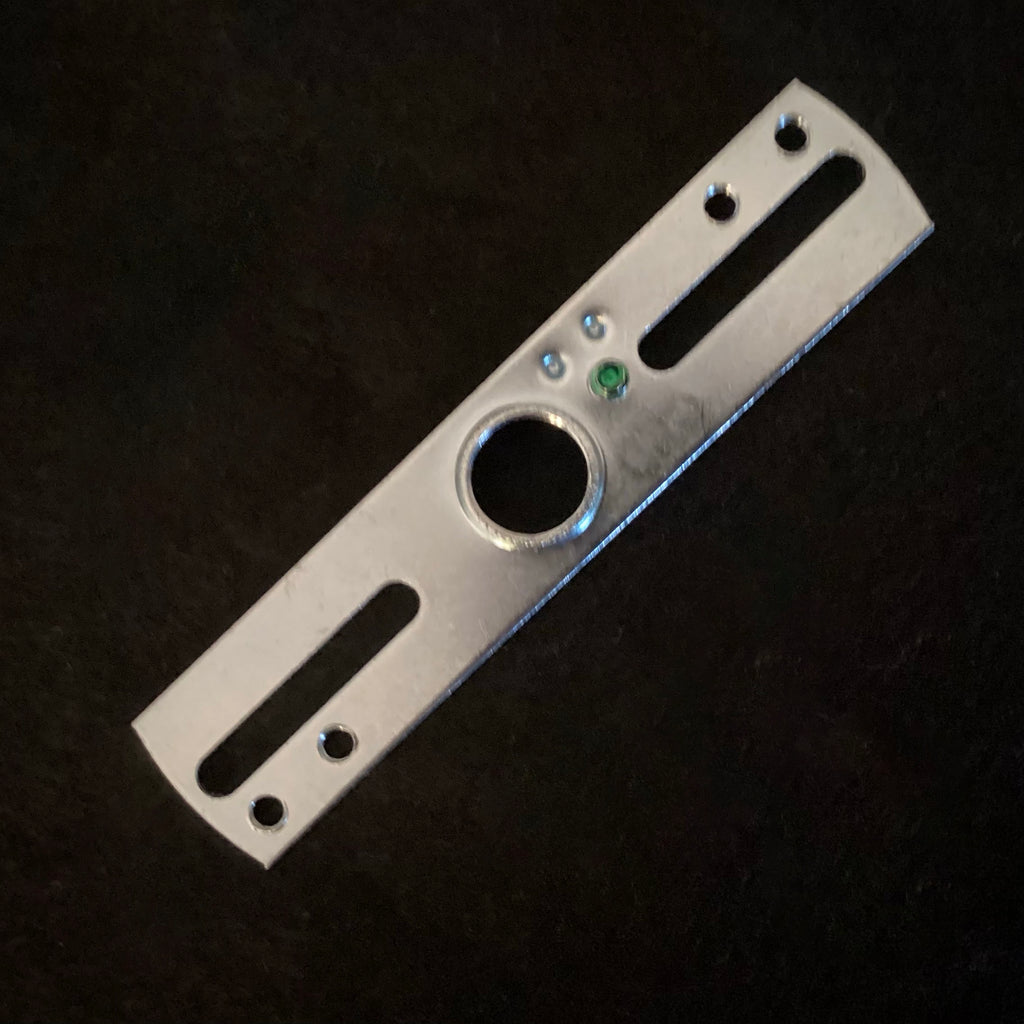

A 1/4 IPS female crossbar mounting bracket is the part most restorers only notice when it is missing. This zinc-plated steel fixture strap spans the electrical box and carries the full weight of the canopy and fixture above it — pendant light, wall sconce, semi-flush, or ceiling mount — wherever a 1/4 IPS threaded pipe or stem connects fixture to box. The center hole is tapped female 1/4 IPS to accept standard lamp pipe, hickey, or threaded stem. Slotted ends adjust to fit 3 1/4 inch and 4 inch round electrical boxes, making alignment clean and exact without shimming or forcing. A green ground screw is installed at the center. The plating is bright, the steel is solid, and the part is new — ready for lighting restoration, rewiring, or custom fixture building without modification.
MEASUREMENTS
Overall length is 4 inches. Width is 7/8 inch. The center opening is female 1/4 IPS thread, approximately 1/2 inch in diameter. Mounting hole spacing is 3 1/4 inches center-to-center on the long slots and 2 3/4 inches center-to-center on the short slots. The adjustable slot range spans approximately 1 3/4 inches to 3 3/4 inches.
CONDITION
New.
✓ Free domestic shipping.
✓ 30 day return policy.
✓ 1/4 IPS female threaded center — accepts standard lamp pipe, hickey, and threaded stem.

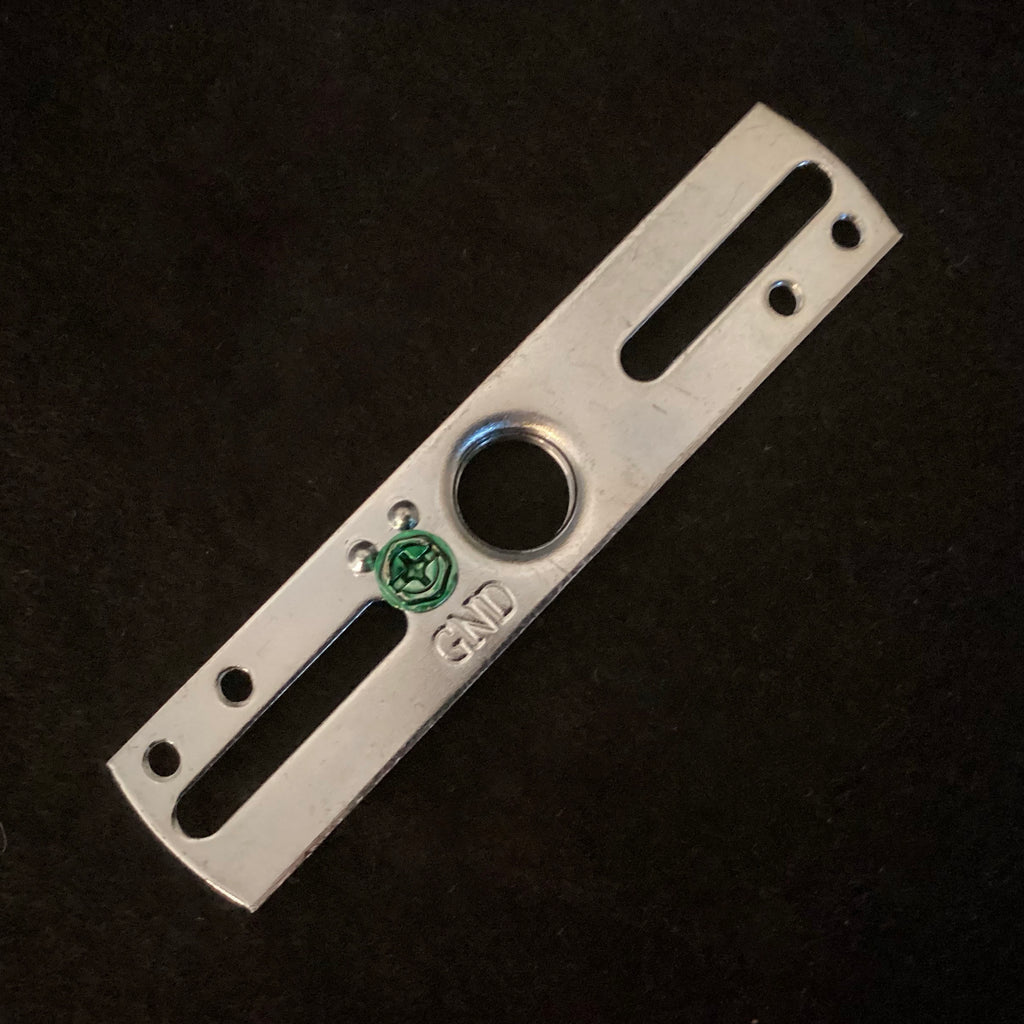

✓ Green ground screw included and installed.
✓ Zinc-plated steel fixture strap — corrosion-resistant and ready to install.
✓ Adjustable slotted ends fit 3 1/4 inch and 4 inch round electrical boxes.
✓ Suitable for pendant, sconce, semi-flush, and ceiling-mount fixture repair and restoration.
This 1/4 IPS female crossbar mounting bracket is offered subject to availability, as it is listed across multiple venues.
Questions are always welcome — please reach out before purchasing if you need to confirm fit.
